	Sliding Door Keyed Locks	Call Toll Free (888) 915-5223
		visit our main site Woodwardsace.com for complete door and cabinet hardware selection

Door Guides

Sliding Door
Flush Pulls
Passage/ Privacy Doors

Door Track
and Roller Sets

Pocket Door
Replacement Rollers

Keyed Locks for
Sliding Doors

Sliding Door
Weather-stripping

One Sided Door Locks

One sided locks for pocket doors
and other inexpensive options
starting at $10.00 ea

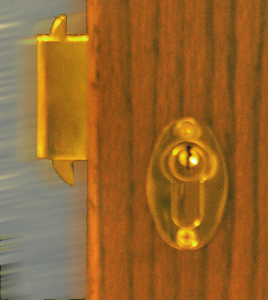

Keyed Pocket Door
Hook Bolt

Accurate
Keyed Pocket Door Locks

Von Morris
Keyed Pocket Door Lock

Lockwood Cavity Lock
Keyed Pocket Door Lock

from $ 99.99

Winkhaus
Sliding Door Locks

Barn Door Locks

Cavilock CL400

Keyed Magnetic Latch Pocket door lock

Baldwin Pocket Door Lock
Mortise Lock Style

Baldwin Boulder, Palo Alto and Santa Monica large and small.
Available in up to 20 finishes, and four styles.
Pocket door lock for every design aesthetic.
Baldwin offers these four styles in privacy, passage and keyed entry,
in the highest quality.

These are new items, some finishes may have extended lead time

Santa Monica Large
PD005

Santa Monica Small
PD006

Boulder
PD016

Palo Alto
PD007

8.3" x 2.3"

5.5" x 2.3"

9.3" X 2.3"

8.1" X 2.4"

1 3/4" thick door only

1 3/8" or 1 3/4" thick door

1 3/4" thick door only

1 3/4" thick door

Starting at $ 439.99

Starting at $ 419.99

Passage $ 429.99

Starting at $ 419.99

WARNING

Flush Pull Only $ 89.99

Blank Plate
for pull only and dummy door

Cylinder Plate
Exterior of Keyed locks

Emergency Plate
Exterior of Privacy

Turn Plate
Interior of Keyed and Privacy

Passage
Edge Pull
mortise box only
$ 249.99

Privacy / Keyed
Mortise Box Only
$ 279.99

Mortise Box Template

WARNING

Baldwin Pocket Door Lock
Cut-Out Style

Baldwin offers the options of Passage, Privacy, and Keyed Entry.
This lock requires a cut out of 2.562" deep x 5.75" tall.
Positive latching when door is closed.
Must specify door thickness
Baldwin specs page and more installation information

Discontinued Limited Availability

Baldwin Pocket Door
Passage $259.99	Select Finish Quantity
Privacy $299.99	Select Finish Quantity
Entry $399.99	Only Lifetime Brass left in Stock Quantity

** Finishes Have Extended Lead time-
Call for more information

WARNING

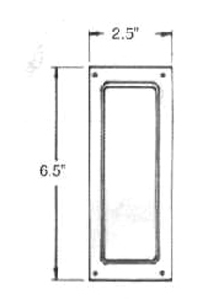

Baldwin Flush Pulls

2.5" x 6.5"x 1/4" deep
from $ 31.99

WARNING

E-LOCK
Pocket Door Lock

The locks below will require a Mortise Pocket and face prep that will allow the trim to interface with the box

Baldwin locks above take a simpler, rectangular cutout of the door

Keyed Pocket Door Lock

Exterior of Keyed

Interior of Keyed/Privacy

Interior / Exterior of Passage

approx. size
3/4" x 3.5"

Layout Information

Passage Privacy Entry Dummy

Strike

WARNING

E-LOCK pocket door lock
Keyed $ 199.99

* Finishes ships in 48 hours other finishes 1 week lead time

WARNING

E-LOCK pocket door lock
Privacy $ 179.99

Privacy has Emergency Slotted Disk trim instead of Cylinder on the outside
* Finishes ships in 48 hours other finishes 1 week lead time

WARNING

E-LOCK pocket door lock
Passage $ 179.99

* Finishes ships in 48 hours other finishes 1 week lead time

WARNING

E-LOCK pocket door lock
Dummy $ 179.99

Dummy is used on Pair of Doors, same as a Passage except the
edge of the box has the strike built in

* Finishes ships in 48 hours other finishes 1 week lead time

WARNING

Plate size 2 7/8" x 7 1/4"

E-lock template

Specify Door Thickness
1 3/8" OR 1 3/4"

Inox Pocket Door
Mortise Locks

Keyed Pocket Door Locks for 1 3/4" thick doors only
				Order Complete Sets Mortise Case, Cylinder (if applicable), Trim Quantity CAWARNING	Luna or Urban Order Complete Sets Mortise Case, Cylinder (if applicable), Trim Quantity CAWARNING
				Order Flush Pulls Only Pair of Blank Pulls Quantity Single Pulls Quantity CAWARNING	Luna or Urban Order Flush Pulls Only Pair of Blank Pulls Single Pulls Quantity CAWARNING
7 Styles Available

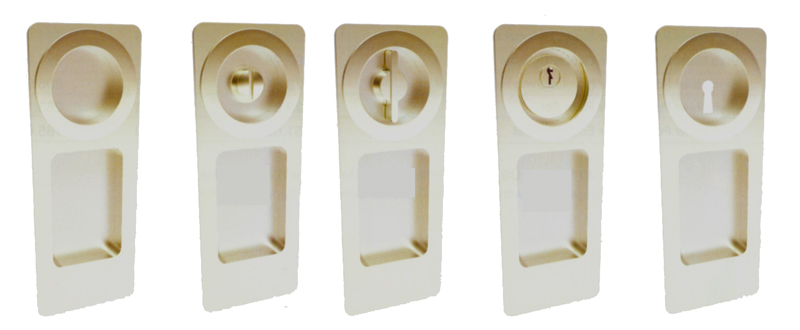

Arc Flush Pull Only	Linear w/ TT09 Thuumbturn	Crown w/ TT08 Thumbturn	Regal w/ Cylinder Hole	Luna Flush Pull Only	Urban Flush Pull Only
				Luna w/ Thumbturn Release	Urban w/ TT06 Thumbturn
CAWARNING
Available in all Functions
Mortise Lock Case w/Deadbolt, Edge Pull and Strike included PD84: $329.99 CAWARNING			Mortise Cylinder $45.00 CAWARNING	Mortise Case w/ Edge Pull and Dust Proof Strike for Inactive Doors PD81: $299.99 CAWARNING	Mortise Case w/ Edge Pull Only for Passage PD80: $279.99 CAWARNING
Order Replacement Mortise Case Only From $230 Quantity CAWARNING					Replacement Mortise Cylinder Only From $40 Quantity CAWARNING

Accurate
Pocket Door Lock
Available with a Variety of trim
and Mechanism Options

Locking Mortise Complete Set	Privacy Mortise Complete Set	Passage Mortise Complete Set	Single Blank Flush Pull
from $629.99	from$ 599.99	from $ 499.99	from $ 129.99

All Locks ship with Standard 2.5" backset

Order Complete Sets Lead time 2-3 weeks

WARNING

Order Blank Flush Pull Only

Lead time 2-3 weeks

WARNING

6 Styles Available

Rectangle

Arched

Notched

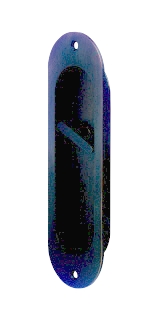

Oval

Full Plate Trim - 7" x 2 1/4"

WARNING

All styles are Available in all functions

Blank
for single flush pull or passage

Cylinder
for Exterior locking Doors

Emergency
For Exterior privacy doors

T-turn
For Interior Locking or Privacy

Square and Round Small Trim
2"

Round Trim

WARNING

T-turn
For Interior Locking or Privacy

Square Trim
for Exterior locking Doors

Trim is available with or without Exposed Screws

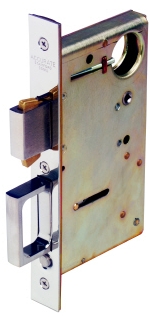

Mortise Lock Mechanism
2.5" BACKSET

mechanism only

CAWARNING	CAWARNING	CAWARNING
2000 - Edge Pull Only	2001 - Locking Mortise	2002 - Locking Mortise with Edge Pull
$ 259.99	$ 289.99	$ 329.99

Von Morris

Pocket Door Lock

Full Plate Trim Bryn Mawr and Moorland
7.25" x 2 1/2"
Available as Passage, Privacy, Keyed Entry or dummy pulls
Wide Selection of finishes available

lead time 3-4 weeks

WARNING

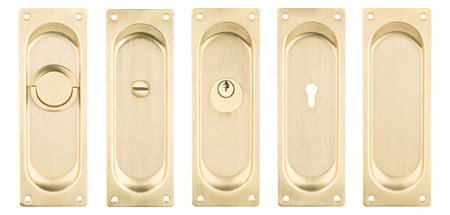

Bryn Mawr Trim

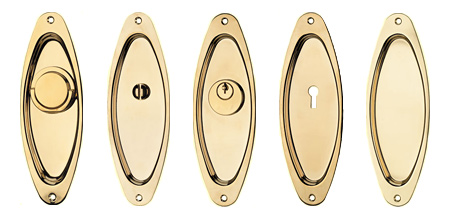

Moreland Trim

Locking Mortise Complete Set	Privacy Mortise Complete Set	Passage Mortise Complete Set	Single Blank Flush Pull
$ 429.99	$ 379.99	$ 349.99	$ 69.99


CAWARNING	CAWARNING	CAWARNING
Active Mortise Box Only	Dummy Door Mortise Box Only	Edge Pull Only
$ 100.00	$ 85.00	$ 65.00

ORDER TOLL FREE (888) 915-5223

Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714-541-5268 FAX (714)541-2123
