Visit our Terms Page first, for help in selecting your roller
click on images for larger view
1606

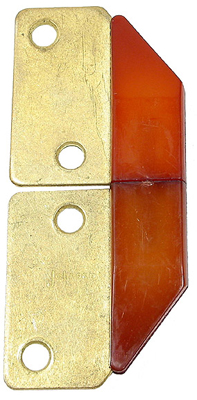

1606 NON-MORTISE HINGES
$ 7.99 PAIR

Specially designed 2-piece hinge enables door panels to be installed or removed by simply lifting off.
Nylon bearing surfaces provide long wearing and smooth operation.
Non-mortise design allows for easy hinge installation and correct panel spacing.


4" Non Mortise Bi-Folding Door Hinge
dimensions page
Quantity

Brown/Brass-tone finish
1603

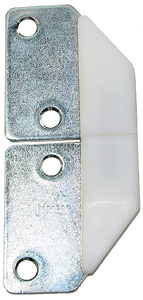

1603 NON-MORTISE HINGES
$ 4.99 PAIR

Specially designed 2-piece hinge enables door panels to be installed or removed by simply lifting off.
Nylon bearing surfaces provide long wearing and smooth operation.
Non-mortise design allows for easy hinge installation and correct panel spacing.


4" Non Mortise Bi-Folding Door Hinge
dimensions page
Quantity

White/Silver finish
1703

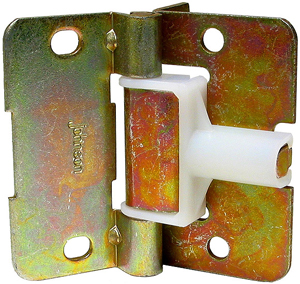

1703 Surface Mounnt SPRING HINGES
$ 3.49 PAIR

Only one of its kind .
Spring dampened  hinge helps prevent the shock of fast opening and closing door

2" Surface Mount Spring Hinges
dimensions page

Quantity



1823

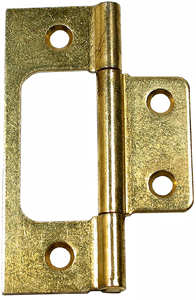

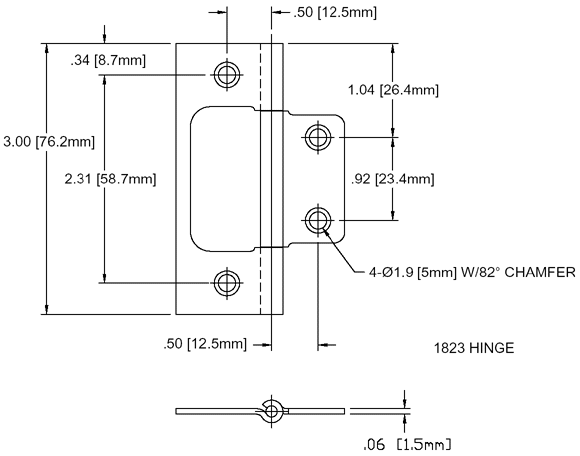

1823 Non Mortise Hinges Pair
$ 3.49 PAIR

3" 1823 non Mortise Hinge (pair)
dimensions page
Quantity

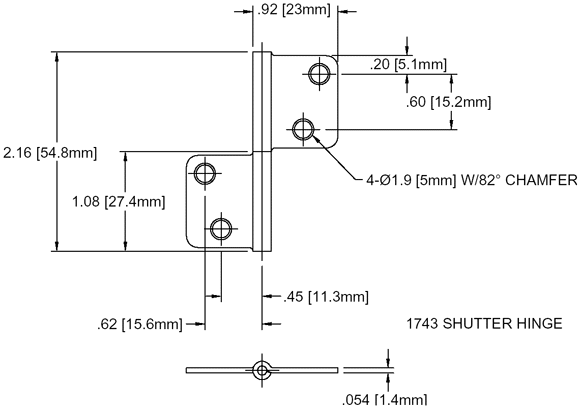

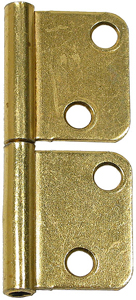

1743 1743 Non Mortise Hinges Pair
$ 7.49 PAIR

2" 1743 non Mortise Hinge (pair)
dimensions page
Quantity
J1808

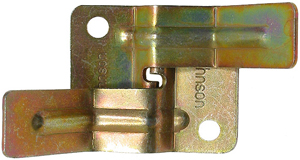

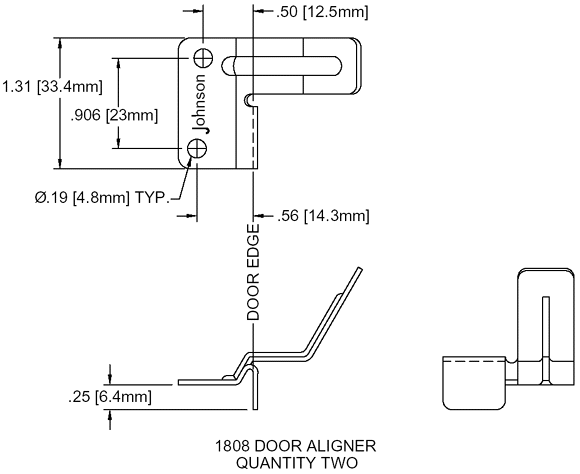

J 1808 Door Aligner
$ 2.00

Aligner for 4 door Systems
dimensions page
Quantity
16260 spring loaded - top mount
Part # Body Height Pin Diameter Price
16260 1 1/2 " 1/4 " $ 3.99
Quantity
1 Pin - fits Cox, Acme
161901 spring loaded - top mount
Part # Body Height Pin Diameter Price
161901 1 1/2 " 1/4 " $ 5.39
Quantity
Set of 2 - fits Cox
161678 solid nylon - top mount
Part # Body Height Pin Diameter Price
161678 1 " 3/8 " $ 3.99
Quantity
Set of 2
161111 spring loaded - top mount
Part # Body Height Pin Diameter Price
161111 1 " 1/4" $ 3.99
Quantity
1 pin
161144 spring loaded - top mount - with guide
Part # Body Height Pin Diameter Price
161144 1 5/16" 7/16 " $ 5.49
Quantity
1 pin - fits Johnson
162014 spring loaded - top mount - with cap
Part # Body Height Pin Diameter Price
162014 1 " 19/32 " $ 4.49
Quantity
set of 2
163143baton spring loaded - top mount - with cap
Part # Body Height Pin Diameter Price
163143 1 1/16" 3/8 " $ 5.99
Quantity
set of 2 with caps
Special order - 2 week lead time
162988 spring loaded - top mount
Part # Body Height Pin Diameter Price
162988 1 3/4 " 3/8 " $3.99
Quantity
set of 2
Special order - 2 week lead time
162975 bottom mount - adjustable
Part # Body Height Pin Diameter Price
162975 1 9/16 " 1/4 " $ 4.99
Quantity
1 pin - fits Acme, Cox
Special order - 2 week lead time
162976 bottom mount - adjustable
Part # Body Height Pin Diameter Price
162976 1 9/16 " 1/2 " $ 5.99
Quantity
1 pin - fits Acme, Cox
161902 bottom mount - adjustable
Part # Body Height Pin Diameter Price
161902 1 1/2 " - $ 7.69
Quantity
set of 2
161509 bottom mount - adjustable
Part # Body Height Pin Diameter Price
161509 1 3/8 " - $ 4.99
Quantity
set of 2
161934
Part # Body Height Pin Diameter Price
161934 1 3/8 " - $ 4.99
Quantity
set of 2
161107 bottom mount - adjustable
Part # Body Height Pin Diameter Price
161107 1 1/8 " 9/32" $ 3.99
Quantity
1 pin
Special order - 2 week lead time

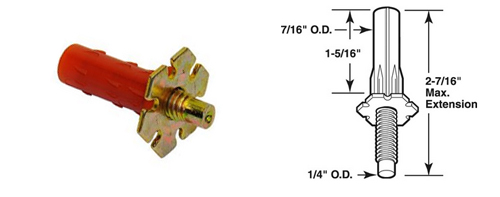

161145 bottom mount - adjustable
Part # Body Height Pin Diameter Price
161145 1 5/16 " 1/4 " $ 3.99
Quantity
1 pin - fits Johnson
163186 bottom mount - adjustable
Part # Body Height Pin Diameter Price
163186 1 " 1/4" SQUARE $ 7.99
Quantity
set of 2
Special order - 2 week lead time
16470 bottom mount - adjustable
Part # Body Height Pin Diameter Price
16470 3/4 " 1/4 " $ 3.99
Quantity
1 pin
163110 bottom mount - adjustable
Part # Body Height Pin Diameter Price
163110 3/4 " 1/4 " $ 7.99
Quantity
1 pin
16471 spring loaded - top mount
Part # Body Height Pin Diameter Price
16471 3/4 " 1/4 " $ 4.99
Quantity
1 pin



We offer the wide selection of rollers.
To check against your roller: match up the screw holes, wheel size, overall bracket dimensions and any other holes or measurements listed from your assembly to the ones above.
In normal circumstances if the dimensions do not match the wheels will not work.

Visit our Questions and Terms page for more help in selection.

It is also very difficult to guess at a missing wheel based on track profile/size.
In the case of a missing roller, If you live in a tract home your neighbor may have the same setup so you can measure from his.

Some wheels are trapped and can not be removed. The easiest way to remove the old assembly is to cut approx. 3-4 inches of track and the end against the wall, this will allow the wheel to be taken out. The piece that was cut out can be screwed back up to complete the track.

We do offer complete units with track and roller sets for doors up to 4000 pounds
Many items are available for pick up at our location in Orange County California.

We keep a large selection of stock on hand. Most units ship same day via USPS Priority Mail and you receive them in 3-4 days.

We have recently expanded our selection of replacement rollers and are in the process of increasing inventory
some items may have a longer lead time - you will be contacted with any possible delays


Order the items above through our online shopping cart for the fastest service.
Larger orders will ship UPS and have a slightly longer shipping time. Next day and Second day shipping options are available at a higher shipping cost.

All returns are subject to a 25% restocking fee, you must call for an RGA before shipping any returns
