keyed pocket door lock from lockshowroom.com

Keyed Pocket door locks fit 1 3/8" or 1 3/4" thick doors
Solid brass Trim Plates and Profile Cylinder

Cylinder length is 1 3/4"
so cylinder will protrude
3/16 on each side of a
1 3/8" thick door

KPD pocket door lock
with 1 9/16 backset Standard Lock

Available in finishes
KPD-3 Polished Brass	$ 100.00
KPD-15 Stainless Trim / Satin Nickel Cylinder	$ 120.00
KPD-15-P Stainless Trim / Silver painted cylinder	$ 80.00
KPD-10B Oil Rubbed Bronze	$ 120.00
KPD-10B-P Oil Rubbed Bronze / Bronze Painted Cylinder	$ 80.00
ORDER KPD ONLINE Select Finish Quantity
Does not include edge or flush pulls visit our Pocket door page for more information

Center hook silver on all units

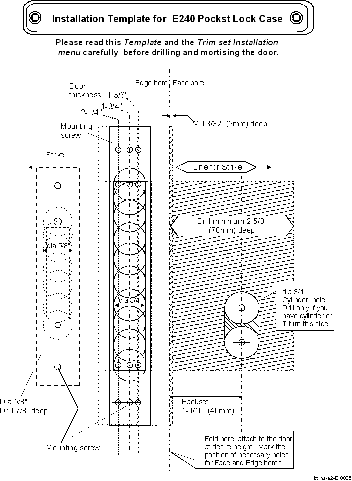

Installation Template
for KPD

GIF format - 1/2 size

Word Doc - full size

Also Available with
T-Turn interior
for Extra Charge

Turn units will
not fit into pocket

Both KPD and KPDHD use the same door trim

KPD- 10B box

Stainless Steel Trim
2.75" x 1 1/8"

Shown with painted Cylinder

Brass Trim
2.75" x 1 1/8"

New Cylinder option
For Bronze and Satin Nickle

Solid Brass cylinder with
Painted Face
More Economical option
Save $ 40.00

Painted Cylinders are NOT available
Keyed Alike

Oil Rubbed Bronze Trim
1 3/8" thick door
2.75" x 1 1/8"

New Square Trim makes installation easier - allows for couter-sinking plates
All locks now ship with square plates

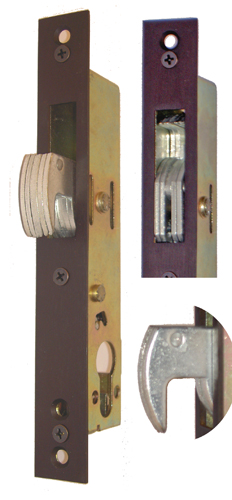

KPD-HD Pocket Door Lock
with 15/16 backset Heavy Duty Hook Lock
1 3/4" thick Doors Only

Available in 4 finishes

KPD HD - 3 Polished Brass w/ Brushed brass Edge Trim lock box brushed brass / cylinder and trim polished brass	$ 140.00
KPD HD - AL Aluminum Face Trim Brushed Chrome Edge trim	$ 130.00
KPD HD - 15 Satin Nickel Face Trim Brushed Chrome Edge Trim lock box brushed chrome/ cylinder and trim satin nickel	$ 160.00
KPD HD - 10B Oil Rubbed Bronze	$ 160.00
ORDER KPD - HD ONLINE Select Finish Quantity
Does not include edge or flush pulls visit our Pocket door page for more information

hook is silver on all units

Installation Template
for KPD-HD

KPD-HD BOX

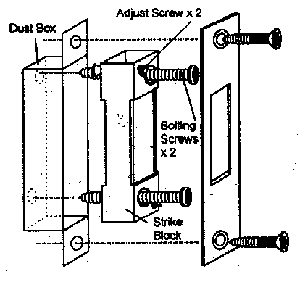

optional Strike Block and Reinforcer
with dust box for KPD
Strengthens instal for Exterior doors
helps eliminate gap between door and jamb
$11.00

not recommended for KPD-HD

Customers have been asking us for a reasonable priced keyed lock for their pocket doors. So we found one!
This lock has barbs that are projected up and down locking the door to the strike The barbs are released by
turning the key with a full rotation of the profile cylinder. Because of space the unit is only available with
keys on both sides - a turn unit would be available but the door will not retract into the pocket.

Currently available in only Brass, Satin Nickel, and Oil Rubbed Bronze
Please contact us for the keyed pocket door locks in other finishes.

We also handle the Baldwin keyed pocket door lock
