550 Flexirol
Stacking Door Hardware

Call Toll Free
(888) 915-5223

visit our main site
Woodwardsace.com

for complete door and cabinet hardware selection


Flexiroll Folding Systems




Flexirol 135°Stacking Door System
Sliding doors for stacking doors

Center Hung
Requires
Bottom Guide Track 94
1100 Max Door Weight
Independant Doors
Uses
550A Top Track
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Variable Configurations
for stacking doors

Stacking Doors

556/61
$ 280.00 ea

Top Mount Hanger
1100 pounds


556/21
$ 300.00


Bracket wraps Edge of Door
Pivots at door edge
Stronger install
1100 pounds


21 / 550P
$ 260.00

Pivot for fixed door Applications
Door needs Radius on end of door
1/16" clearnace
INCLUDES
21R/94 Pivot Set

550 A SWEPT
90° Stepped Corner
$ 320
550 A 135 ELBOW
135° Bend
$ 260
45R/550
45° Intersect -Right Hand
$ 400.00
Stacking Door System Configurations
45L/550
45° Intersect - Left Hand
$ 400.00

Stacking Door System Configurations
Sample System
stacking door hardware system C
5 doors
1
21/550 P
pivot set
260.00
260.00
4
556/61
Hanger
280.00
1120.00
4
556/21
Hanger
300.00
1200.00
1
H135/550
Bend
320.00
320.00
1
45L/550
Y Track
400.00
400.00
2
HH3/301
Track Stop
80.00
160.00
20
JS180
Track Joiners
6.00
120.00
1
550A197
Track
700.00
700.00
1
550A 96
Track
350.00
350.00






Total

$ 4,630 .00

No bottom Guide Channel or Flush Bolts Included

Sample System
stacking door hardware system E
5 doors
5
556/61
Hanger
280.00
1400.00
5
556/21
Hanger
300.00
1500.00
1
H135/550
Bend
320.00
320.00
1
45L/550
Y Track
400.00
400.00
3
HH3/301
Track Stop
80.00
240.00
20
JS180
Track Joiners
6.00
120.00
1
550A197
Track
700.00
700.00
1
550A 72
Track
250.00
250.00






Total

$ 4,930.00

No bottom Guide Channel or Flush Bolts Included

Sample System
stacking door hardware system D
1 Door
1
556/61
Hanger
280.00
280.00
1
556/21
Hanger
300..00
300.00
2
H135/550
Bend
320.00
640.00
2
HH3/301
Track Stop
80.00
160.00
12
JS180
Track Joiners
6.00
72.00
1
550A 96
Track
350.00
350.00






Total

$ 1,802.00


No bottom Guide Channel or Flush Bolts Included

System C - Sample Layout
Using LH Y

top view looking down

Sytem E
example of Lined up doors


Sample System B

For Lighter Doors ( 200 lbs)
Visit our KNCROWDER Stacking Door Page


Flexirol and 550A track offers a heavy duty option for a wide variety of applications
Straight Sliding up to 1100 pounds , Folding (either center hung or offset), Pivot doors,
Stacking Partition doors with 90 degree or 45 degree angles

Contact us with your needs and we can help in designing your system


All application on this page use the following tracks - Guides and track support Below

550 A track

6' - $ 250.00
8' - $ 350.00
10' - $ 450.00
16.5' - $ 700.00

1A/550
Optional Wall Mount Bracket
$ 100.00
3S 550
Bracket to Hang track in
Suspended Ceiling Applications
adjustable drop 4" - 39"
$ 265.00


Bottom Guide Track

3/4" tall x 13/16" outside


Quantity

94 Brass - 96" $ 370.00




21R/94 Guide for Endfold $ 35.00



HH3-301
Track Stop
$ 80.00

Quantity
What if I don't install a bottom track?
click here to find out

Joining strips
recommended for joining track together

2-4 per joint
JSR1-180
180° ' Straight
$ 6.00 ea.

approx size
Length: 3 3/4"






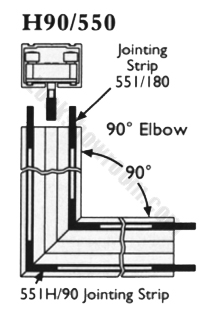

Flexirol 90
Sliding doors for stacking or right angle applications

Center Hung
Requires
Bottom Guide Track 94
220 Max Door Weight
Independant Doors
Uses
550A Top Track
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Variable Configurations
for stacking doors


555/61 Hanger
$ 600.00

Top Mount Hanger
Door must move past corner to fold



555/21 Hanger
$ 665.00


End Mount Hanger
Attatches to top and side of door
allows door to fold at corner


21 / 550P
$ 315.00


Pivot for fixed door Applications
Door needs Radius on end of door
1/16" clearnace
INCLUDES
21N/94 Pivot Set

550 A 90
$ 390.00
550 A T
$ 490.00
550 A Cross
$ 585.00







PcHenderson Flexirol Track and Roller Images

Standard Flexirol 556 Hanger
Rolls on Ball bearing wheels with
Ball Bearing Guide Wheels

Straight Sliding or 135
Bends
Doors up to 1100 pounds


Flexirol 555 Roller Hanger
for 90 degree track Situations

220 lbs doors

550 Track Supports
both the 555 and 556 Rollers



Heavy Duty Track is Large
3 7/8" wide x 2 7/8" tall

ORDER TOLL FREE (888) 915-5223







Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714-541-5268 FAX (714)541-2123
