Lock backset: 28 mm (1-1/8”).
• Lock center: 92 mm (3-3/4”).
• Lock spindle hub: offset,
for 8 mm square spindle.
• Face-plate: stainless steel 304 grade brushed,
20 mm (13/16”) wide,
370 mm (14-1/2”) tall, 2.5 mm thick, with arched ends.
• Lock materials: stainless steel face and hooks,
galvanized steel body.
• Hooks are stainless steel 304 grade and adjust in or out +/– 2 mm.
• Adjustable strikes: 3 options in stainless steel 304 grade brushed.
box is 11 3/4" x 1 3/4" door
round corner lock face is 14 1/2" x 3/4"
Winkhaus Sliding Door Lock Case Only
$ 110.00

Quantity

Winkhaus Door Locks

Escutcheon:
34 mm (1-3/8”) wide,
222 mm (8-7/8”) long,
10.5 mm (3/8”) thick
We will need to know the following in order to place the order
Strike thickness (Flat, 9mm, 20mm)
Door Thickness 1 3/4" or 2 1/4" thick door
Trim Design Botticelli, Fontana, Volo, Mercury, NEW Miami
Trim Finish (see options below)
Lock Function Keyed Entry - Key Oustide - Turn knob inside
Patio - Blank Exterior, Turn Knob Interior
Inactive - Blank Plates - Fixed Levers

***Please specify which strike plate you need with your lock and handles***

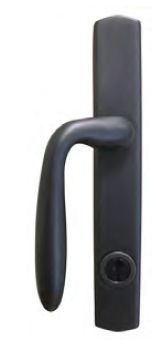

Botticelli

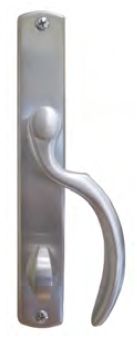

Fontana

available finishes available finishes
PVD steel, Oil Rubbed Brass, PVD Bronze
Flat Black, Antique Brass, PVD Brass, White
PVD steel, Oil Rubbed Brass, PVD Bronze
Flat Black, Antique Brass, PVD Brass, White
These handles and cylinders are sold in kits, including:
• Handle & plate sets (Left or right-handed)• Cylinder (when applicable)
•Winkhaus Sliding door lock• Spindle• Screws• Foam gasket• Allen wrench
• Instructions
These handles and cylinders are sold in kits, including:
• Handle & plate sets (Left or right-handed)• Cylinder (when applicable)
•Winkhaus Sliding door lock• Spindle• Screws• Foam gasket• Allen wrench
• Instructions
Keyed

Quantity
Keyed

Quantity
Patio

Quantity
Patio

Quantity
Inactive
(handed)

Quantity
Inactive
(handed)

Quantity

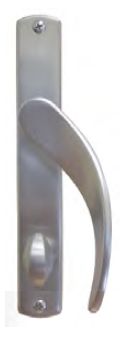

Volo

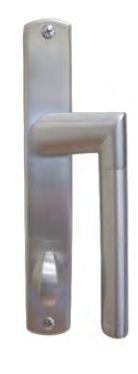

Mercury

available finishes available finishes
PVD Satin steel, Oil Rubbed Brass, PVD Bronze, Flat Black, White PVD Satin steel
These handles and cylinders are sold in kits, including:
• Handle & plate sets (Left or right-handed)• Cylinder (when applicable)
•Winkhaus Sliding door lock• Spindle• Screws• Foam gasket• Allen wrench
• Instructions
Limited availability
Keyed

Quantity
Keyed
includes Trim, Lock, Strike, Cylinder
$ 399.99
Patio

Quantity
Patio
includes Trim, Lock, Strike, Cylinder
$ 379.99
Inactive
(handed)

Quantity
Inactive
$ 229.99

Miami

***The Miami is handed for all functions***
Available Finishes
Graphite Black, PVD Espresso, PVD Satin Nickle, PVD Polished Brass
These handles and cylinders are sold in kits, including:
• Handle & plate sets (Left or right-handed)• Cylinder (when applicable)
•Winkhaus Sliding door lock• Spindle• Screws• Foam gasket• Allen wrench
• Instructions
Keyed

Quantity
Patio

Quantity
Inactive

Quantity

Flat Stike - wood Doors
9mm (approx 3/8") Vinyl Doors
20mm (approx 3/4") Vinyl Doors

Winkause Door Stike only
$ 18.00


Quantity

  Cylinder Included with trim above
Cylinders available in 3 finishes

Dark Bronze
(used with ORB/613, PDV bronze/739, black/622)
Bright Brass
(used with antique brass/609, bright brass/723)
Nickel
(used with white/714, pvd ultra steel/748)
