Profile Track System


Complete your project with our Sliding Door Locks



Bottom Rollers and Track for Sliding Doors

Heavy Duty 1800 Lb Doors Light Duty 100 # door Brass Bottom Track System 915B SOLID BRASSS
Surface Mounted Bottom Track

More information on Profile Track Layout

All Weights listed are Door Weights - using 2 rollers per door

Replacement Glass Door Rollers



Stainless Steel Housing Rollers for Patio Doors
Nylon or Stainless Wheels

Nylon wheels are quieter and create less wear on the track
quality product from Anthony Inovation

B700

700lb roller

700 lbs. Max Weight
1.8" wheel Diameter
$ 89.99
choose Nylon or Steel tread Dimensions



B200-SS / KTEASY

Stainless Standard Steel wheels and housing
200 lbs. Max Weight
1.25" diameter
$ 29.99 each




B400

400 lbs. Max Weight
1.5" diameter
 $ 49.99
choose Nylon or Steel tread


Dimensions


B150-N

Nylon wheels and standard steel housing
150 lbs. Max Weight
1.25" diameter $ 29.99


Dimensions

B300

300 lbs. Max Weight
1.25" diameter
$ 39.99
choose Nylon or Steel tread


Dimensions



Nylon Cover for Adjustment Hole

hole cover

1/2" bore - $ 1.00ea





END ADJUSTABLE ROLLERS

Nylon Wheels
Stainless Steel Body

anthony inovactions rollers

1" x 8" Housing

850 pound door roller Capacity
Our Standard tracks are only rated for 800 lbs
1.5" daimeter
1000Quad

$ 99.99





quad roller

2" x 12" Housing

1300 pound door roller Capacity
Our Standard tracks are only rated for 850 lbs
3 " diameter
QUADZILLA

$ 149.99



2.5" X 17" Housing

2200 pound door roller Capacity
Our Standard tracks are only rated for 850 lbs
3 " diameter
GIANTQUAD

$ 219.99


Bottom Rollers and Track for Sliding Doors

Profile Track System
More information on Profile Track Layout
all Profile tracks are
non-rusting solid aluminum
bronze anodized finish 		All Standard Tracks ship at 94"
ask about shipping on lengths longer than 94"
up to 24 ft on most profiles		 Stainless Steel Caps are recomended for all aplication
and manditory for use with metal rollers


P25
height from floor 5/16'
3/8" deep Kerf
more info
can also be recessed into floor
dado into wood threshold or floor
Profile 25
94" - $ 59.99
bronze anodized finish

P 25 long lenghts
12' $79.99
16' $ 119.99
24' $ 179.99
Plus freight charges


P75
Multi Slide Patio Door track

height from floor approx 11/16'
used where lower finish profile is required

Profile 75
94" - $69.99
bronze anodized finish


P 75 long lenghts
12' $79.99
16' $ 119.99
24' $ 179.99
Plus freight charges


P125
Multi Slide Patio Door track

height from floor 1 1/8'
for stone floor - needing a higher profile

Profile 125
94" - $ 69.99
bronze anodized finish



P 125 long lenghts
12' $79.99
16' $ 119.99
24' $ 179.99
Plus freight charges


P175

height from floor 1 5/8'



Interlocking track works on
1 3/8", 1 3/4" and 2 1/4" doors
dado into wood threshold or floor
Profile 175
94" - $ 89.99
bronze anodized finish

P175 long lenghts
12' $79.99
16' $ 119.99
24' $ 179.99
Plus freight charges


Stainless Steel Cap for use with the
Profile Tracks above


Cap is mandatory for rollers with Steel wheels


SSC Cap
Shown on P25 Track
works with all Profile Tracks
BOTTOM TRACK STAINLESS .

94" Stainless Steel Cap
$ 35.00


SSC long lengths
12' $ 65.00 - 16' $ 70.00 - 24'' $ 100.00

SSC long lenghts
12' $ 64.99
16' $ 74.99
24' $ 990.99
Plus freight charges


Surface Mount Tracks


Nylon rollers only - will not work with SS caps

P20

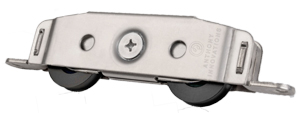

works with B300SN and B400SSN rollers only

94" - $ 59.99


P20 long lenghts
12' $ 79.99
16' $ 119.99
24' $ 179.99
Plus freight charges



G Track

patio door systems
bottom track patio door





94" - $119.99




G track long lenghts
12' $149.99
20' $ 279.99
Plus freight charges





P38



patio door track 38



surface mounted patio door tracktrack can be recessed



94" - $ 69.99


P38 long lenghts
12' $ 119.99
16' $ 179.99
24' $ 199.99
Plus freight charges

Spacing does not work with Interlocks



More information on Profile Track Layout

P25 Layout

Recessed Layout information - shown using P25		 patio door track
Typical Layout

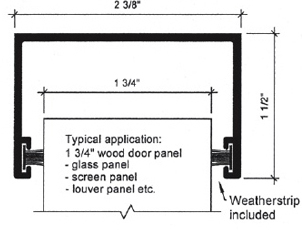

Fixed Head Channel


slding door head channel


1 3/4" Head Channel
94"

1 3/8" - $ 180
1 3/4" - $ 100
2 1/4" - $ 180




1 3/4" Long Lengths
12' $ 129.99
16' $ 169.99
24' $ 239.99
Plus freight charges

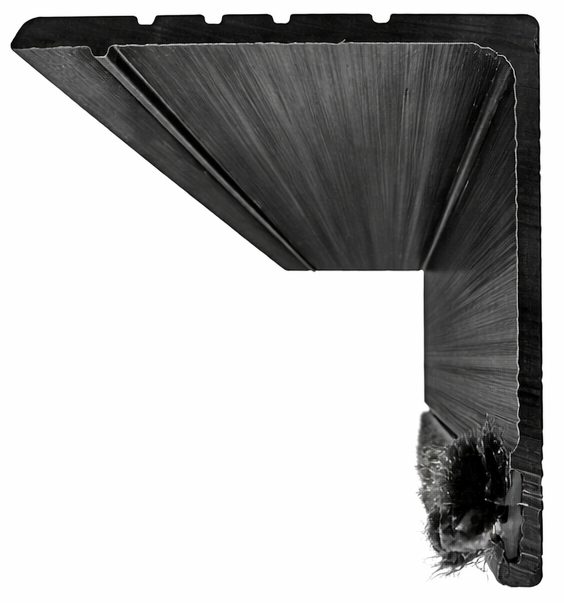

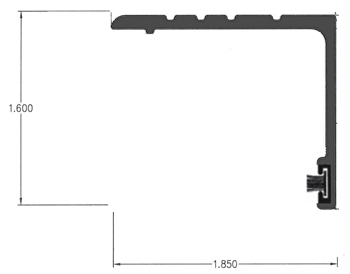

Adjustable Head Channel
1 3/8", 1 3/4", 2" and 2 1/4"


sold in pairs

2 Piece interlocking head channel works with a variety of door sizes

available up to 24' long

94" Adjustable Head Channel
$ 119.99



Adjustable Long Lengths
12' $ 169.99
16' $ 229.99
24' $ 329.99
Plus freight charges



HDH

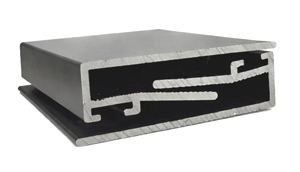

Interlock weather strip

door seal interlock
Neoprene set block, 1/4” x 1/2” x 2”, black.
Installed at top and bottom on single side
set as a stop only
door seal interlock 2

KT-INT
(Set as shown above)

more dimensions


94" Interlock $ 99.99


Also Available
8 foot
10 foot

With Freight Shipping
contact us to get freight quote


Stop Block For Head Channel


Stops door and prevents door from
Bring lifted when in locked position

HCSTOP
$29.99

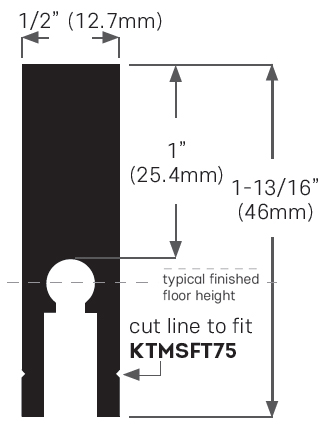

KTMSFDP Fixed panel profile



Sold in pairs of 2 4" pieces
to be installed at each end of the fixed panel
$ 39.99


Recessed into the bottom of the door
to allow the door to sit on the profile track.
on Fixed Panel














FFI
Interlock weather strip

SLDING DOOR INTERLOCK
Works with gaps 19/32" to 1/2"



Available in 2 finishes

Silver

Bronze
$ 234.99 $ 234.99

Includes (1) 94" pair with gasketing
12' available with freight shipping

New Jamb/ Interlock for Pocketing Doors
JAMB INTERLOCK

jamb interlockjamb interlock

slideing door interlock

Interlock for door side included







Jamb Post
J175

jamp post
For 1 3/4" thick doors only
$ 199.99






Pocketing Door Interlock Set
$ 249.99

Brush Seals and Door Bumps included








Sample System Layouts


Multi Slide Patio Door System Multi Slide Patio Door System
Sample
3 Door System with Pocket
9 foot Opening

1 P75 Bottom Track 6' 45.00 45.00
1 P75 bottom Track 9' 90.00 90.00
1 P75 bottom Track 12' 90.00 90.00
1 SSC Stainless Cap 6' 20.00 20.00
1 SSC Stainless Cap 9' 40.00 40.00
1 SSC Stainless Cap 12' 40.00 40.00
3 Head Channel 1 3/4" x 12' 120.00 360.00
6 B250 SS rollers 70.00 420.00
3 Head Channel Bump Stop KTSTOPB 50.00 150.00
3 KT INT interlocking Weather strip 100.00 300.00
18 feet KTD WP10835BL Bottom Seal 2.00 36.00
8 DS435 End Seal 1.20 9.60

  Total   1565.60

  plus shipping

Sample
3 Door System Fixed Door
8 foot opening

1 P75 Bottom Track 3' 30.00 30.00
1 P75 bottom Track 6' 45.00 45.00
1 P75 bottom Track 94" 60.00 60.00
1 SSC Stainless Cap 6' 25.00 25.00
1 SSC Stainless Cap 94" 25.00 25.00
3 Head Channel 1 3/4" x 8' 85.00 255.00
4 B250 SS rollers 70.00 280.00
1 DP Fixed Panel insert KTMSFDP 39.99 39.99
2 Head Channel Bump Stop KTSTOPB 50 100
2 KT INT interlocking Weather strip 100.00 200.00
18 feet KTD WP10835BL Bottom Seal 2.00 36.00
8 DS435 End Seal 1.20 9.60

  Total   $ 1105.59





More System Layout information pages
Page 1 Page 2 Page 3

FFI Bottom Track from Functional Fenestration
FDP BOTTOM TRACK 90 BOTTOM TRACK   fastrack patio door track system

FDP TRACK

1 /2" Tall x 7/8" wide
6mm radius top


Dimensions


250 lb max weight
See P75 for bronze option

90 Track

7 /16" tall x 7/16" wide
Aluminum
6mm radius top
Dimensions




 FFI Fastrack System
available as an alternative to
our Profile track bottom track system

Available in Stainless, Brass, and Aluminum Systems

FFI Fastrack

94" - 54.99

94" - 69.99




20' - $ 179.99 + freight

20' - $ 179.99 + freight






All Weights listed are Door Weights - using 2 rollers per door

B

Brass Bottom Mount Door Track


BRASS TRACK
Surface or recessed Track

Recommend Roller



 SS ROLLER
Click on image for dimensions

380 lb system


solid brass patio track

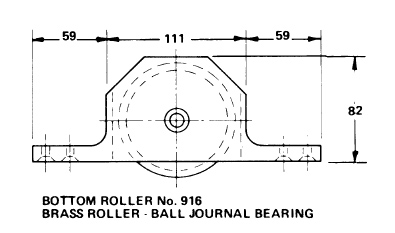

918 Bottom Track
25 mm wide x 10mm tall

STAINLESS PATIO DOOR ROLLER
Stainless Steel x Nylon Rollers

$ 59.99

B400SSN

Must select Nylon Tread for use with brass track

94" $ 279.99




C

915B Solid Brass
Track System

400 lb Doors
solid brass door track
Solid Brass Track


18mm = .7086 in.   -  7mm = .2297 in
5 foot $ 100.00
6 foot $ 120.00
94 inch $ 200.00
13 foot $ 250.00
+ Long shipping


dimensions

SST Twin Wheel Roller
End Adjustable
Stainless Steel

5mm wheel is for 915B only
will not work with Profile tracks

$ 70.00 ea


Quantity


Easy Install - Cut groove from end of door

Roller installs into top of 7/8" groove - screws straight up




D


Light Duty
Sliding door Track

915 A track
Aluminum Bottom Track

6 foot $ 59.99
8 foot $ 119.99


.811 wide x .275 tall
approx 7/8" x 1/4"

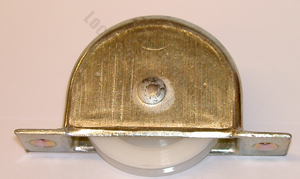

913N - Nylon wheel
120 lb door - $ 25.00 ea

Quantity


16774
Steel Wheel - Surface Mount
50 lb door
$ 30.00 pair
Quantity

Sliding Door
Top Track Guide Systems


D

 Heavy Duty and for Wall mount Applications

54/900
54/900
TOP GUIDE ROLLER


Quantity

New

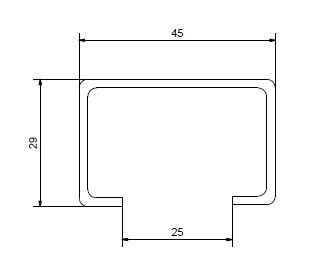

Extruded Aluminum Profile900an
900AN Top Guide Track

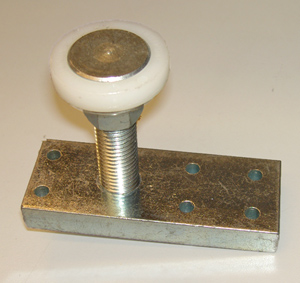

902 - Top Mount Guide
$ 74.99

Approx. Base size
1 1/2" x 4" x 1/2"


Quantity


Brackets For Surface Mounted Doors

1/900 Single Track Hanger
$ 39.99



Quantity


5/900 Double Track Hanger
$ 69.99



Quantity
HH2/SS

Track Stop
HH2/SS

In track stop for 900 Track

$ 54.99

Light Duty
Below guides will work with either Guide Channel right

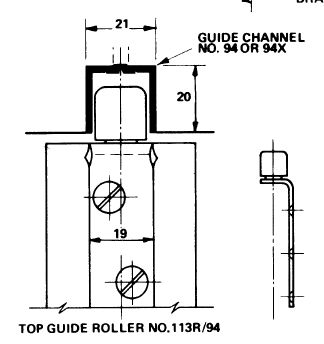

113 R/94
Edge Mount Guide
$ 19.99

Quantity

Allows for easier installation but not as supportive as below
Metal roller on 94 track will make more noise
KT 23 track with nylon inert recommended




Top Mount 106N94 guide
Nylon Guide Roller
1" x 4"
$ 36.99

Recommended for installation when more than 1 section of
top track is used for easier install

Nylon roller runs quiet with 94 track

Top Track Option 1

94 Aluminum Guide Channel
Approx size 13/16" x 13/16"

94 Guide Channel


94 guide track

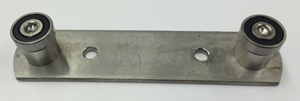

KT 127

Stainless Steel with Ball Bearing


Quantity

Recommended for installation when more than 1 section of
top track is used for easier install
use With KT23 for best results






Top Mount 106R94 guide
Brass Guide Roller
1" x 4"
$ 17.99

Quantity

Recommended for installation when more than 1 section of
top track is used for easier install

Metal roller on 94 track will make more noise
KT 23 track with nylon insert recommended

Top Track Option 1

KT23 Aluminum Guide Channel
Nylon Insert allows for smooth and quiet install
Approx size 7/8" x 15/16"

KT23 guide channel





Quantity



Black Nylon insert

KT23 long lengths
12' $ 132.00
16' $ 176.00
24' $ 190.00

Plus freight charges




Heavy Duty
Bottom Mounted
Door Track
1800 - 4400 lb doors

298 Bottom Track

heavy duty bottom track



must be set in Concrete

Dimensions

2" tall x 2" wide
concrete mounted door track

298 Bottom Track
298 - 3 meters
9' 8"
$ 199.99
+ freight charges



commercial door track

Rollers


Recessed into Metal Doors

1800 lb door 4400 lb
#3S Roller $ 479.99 4SJ Roller $1,800.00
15" x 3" x 2 1/2" 18" x 4" x 3"

lead time 4-6 weeks
Click on Links Above for full Dimension information


Cut into Wood Doors

inside Dimension 2"
Outside 2.5"

1800 lb
#3 Roller $ 529.99
15" x 6 " x 2 1/2"
Click on Links Above for full Dimension information


99 Guide Channel

Steel 118" length

$ 550.00
extra freight charge will apply



53/99 guide
$ 49.99


104/99 guide
$39.99


31 safety guide bracket
31 Bracket $ 39.99

Click on Links Above for full Dimension information




# 3 Roller

1800 pound Information sheet

4400 pound information sheet






















Roller 913N 913XB 916
Max panel weight 120 lbs 380 lbs 600 lbs
A .629" .866" 1.25"
B 1.45" 1.88" 3.22"
L 1.88" 2.48" 4.37"
M 2.91" 4.6" 9"
Bottom Track # 915A # 918 # 917
D .23" .39" .511"
E .82" 1" 1.38"
Bottom Track   # 815 # 817
J   1.25" 1.49"
K   .24" .32"
H   .63' .87"


All dimensions on the site are approx, please call to verify any critical measurements
We recommend to never Prepare a job site without having the parts
and take no responsibility if you do.



bottom_door_track

bottom roller doors

ORDER TOLL FREE (888) 915-5223

Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714)-541-5291
