550 Flexirol
Door Tracks and Rollers

Call Toll Free
(888) 915-5223

visit our main site
Woodwardsace.com

for complete door and cabinet hardware selection

Door Guides

Sliding Door __ Flush Pulls
Passage/ Privacy Doors

Pocket Door
Replacement Rollers

Keyed Locks for
Sliding Doors

Sliding Door
Weather-stripping

FAQ Help Page Door Track and Roller Sets E-mail Us

PC Henderson
Industrial Door Track Industrial
look
Exposed Hangers
Curved Track
up to 4400 lbs

Door Track and Rollers
Standard Duty

Door Track for Pocket and Bi-fold
Interior Applications
Pocket Door Frame Kits
up to 440 lbs

Flexirol
Heavy duty track

Folding, stacking and
multifunctional / stacking doors

Up to 1100 lbs

Stainless Steel
Round Rail

Exposed track for
glass and wood doors

Specialty Applications
Min Clearance track
Full Access Bi-fold

Open Rail System
Exposed track and Rollers

Tiger Brand
Track and Rollers
Specialty Track
a Favorite of Architects




Pc Henderson Hardware Specs Pages
Flexirol Roller and Track Images
See the Quality!
Pacer Track System
Similalar to Fexirol but less weight and cost
Flexirol Folding PDF Flexirol Offset PDF Flexirol Multi-fold PDF files


Flexirol and 550A track offers a heavy duty option for a wide variety of applications
Straight Sliding up to 1100 pounds , Folding (either center hung or offset), Pivot doors,
Stacking Partition doors with 90 degree or 45 degree angles

Contact us with your needs and we can help in designing your system


All application on this page use the following tracks - Guides and track support Below

550 A track

6' - $ 275.00
8' - $ 325.00
10' - $ 500.00
16.5' - $ 650.00

1A/550
Optional Wall Mount Bracket
$75.00
3S 550
Bracket to Hang track in
Suspended Ceiling Applications
adjustable drop 4" - 39"
$ 200.00

Bottom Guide Track

3/4" tall x 13/16" outside


Quantity

94 Brass - 96" $ 350.00
106N / 94 GUIDE $ 26.00
with Nylon Guide
Quantity
556/57 Hangers
for Straight Sliding application
2 per door 1100 lbs


$ 250.00 ea
106R / 94 GUIDE $ 16.00
with Metal Guide
Quantity




21R/94 Guide for Endfold $ 28.00

pcHenderson

971 Bottom guide threshold
5" x 1/2"


8' Aluminum finish $ 72.00

HH3-301
Track Stop
$ 75.00

Quantity
What if I don't install a bottom track?
click here to find out

Joining strips
recommended for joining track together

2-4 per joint
JS 180
180 ' Straight
$ 8.00 ea.

approx size
3/8 x 2 3/4 x 1/16"



Flexirol for Centerfold and Straight Sliding Wood Doors
Center Hung
Interior Aplications
275 Max Door Weight Centerfold
1100 Max Door Weight Sliding
Doors Hinge to each other
Odd number of doors
for floating panels
3,5,7,9 leaves
1/2 door required to have
panels fixed to wall
3.5 , 5.5, or 7.5 leaves
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Requires
Bottom Guide Track
Application

Top Hung Flexirol gear and fittings for center folding wood partition doors. Leaves are hung centrally and can fold to one or both sides. For Applications hinged to the jamb, 3 1/2, 5 1/2, 7 1/2 leaves can be used with the half leaf hinged to the jamb. For best operation of floating units 5,7 or 9 leaves should be used. Any access door should be hinged separately to the jamb

centerfold application
556/61 Hangers
for Centerfold application
275 lbs

$ 300.00 ea



Flexirol for Endfold Centerhung Wood Doors
Center Hung
Requires
Bottom Guide Track
275 Max Door Weight Endfold
Doors Hinge to each other
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"

Application

Top hung Flexirol gear and fittngs for end folding wood partision doors. Leaves can be hung to the left or right of an opening or hung as floating units



21/550 Pivot Set
$ 265.00
556/21
Hanger for Endfold
$ 300.00
21R/94
Guide for Endfold
$ 28.00





Flexirol 90
Sliding doors for stacking or right angle applications

Center Hung
Requires
Bottom Guide Track 94
220 Max Door Weight
Independant Doors
Uses
550A Top Track
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Variable Configurations
for stacking doors


555/61 Hanger
$ 500.00

Top Mount Hanger
Door must move past corner to fold



555/21 Hanger
$ 550.00


End Mount Hanger
Attatches to top and side of door
allows door to fold at corner


21 / 550P
$ 265.00


Pivot for fixed door Applications
Door needs Radius on end of door
1/16" clearnace
INCLUDES
21N/94 Pivot Set

550 A 90
$ 300.00
550 A T
$400.00
550 A Cross
$ 500.00

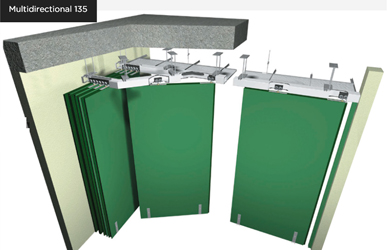

Flexirol 135
Sliding doors for stacking doors

Center Hung
Requires
Bottom Guide Track 94
1100 Max Door Weight
Independant Doors
Uses
550A Top Track
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Variable Configurations
for stacking doors


556/61
$ 300.00 ea

Top Mount Hanger
1100 pounds


556/21
$ 300.00


Bracket wraps Edge of Door
Pivots at door edge
Stronger install
1100 pounds


21 / 550P
$ 265.00

Pivot for fixed door Applications
Door needs Radius on end of door
1/16" clearnace
INCLUDES
21R/94 Pivot Set

550 A SWEPT
90 Stepped Corner
$350
550 A 135
135 Bend
$350
45L/550
45 Intersect - Left Hand
$ 400.00
45R/550
45 Intersect - Right Hand
$ 400.00
Sample System
5 doors
1
21/550 P
pivot set
265.00
265.00
4
556/61
Hanger
300.00
1200.00
4
556/21
Hanger
300.00
1200.00
1
H135/550
Bend
350.00
350.00
1
45R/550
Y Track
400.00
400.00
2
HH3/301
Track Stop
75.00
150.00
20
JS180
Track Joiners
8.00
160.00
1
550A197
Track
650.00
650.00
1
550A 96
Track
325.00
325.00






Total

$ 4,700.00
No bottom Guide Channel or Flush Bolts Included
Sample System
5 doors
5
556/61
Hanger
300.00
1500.00
5
556/21
Hanger
300.00
1500.00
1
H135/550
Bend
350.00
350.00
1
45R/550
Y Track
400.00
400.00
3
HH3/301
Track Stop
75.00
225.00
20
JS180
Track Joiners
8.00
160.00
1
550A197
Track
650.00
650.00
1
550A 72
Track
275.00
275.00






Total

$ 5,060.00

No bottom Guide Channel or Flush Bolts Included
Sample System
1 Door
1
556/61
Hanger
300.00
300.00
1
556/21
Hanger
300.00
300.00
2
H135/550
Bend
350.00
700.00
2
HH3/301
Track Stop
75.00
150.00
12
JS180
Track Joiners
8.00
96.00
1
550A 96
Track
325.00
325.00






Total

$ 1,871.00

No bottom Guide Channel or Flush Bolts Included

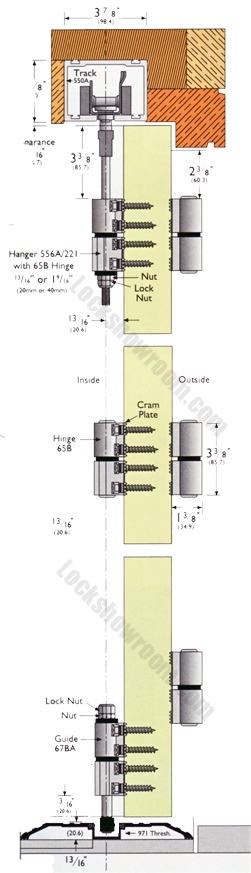

Flexirol for Endfold Offset
Exterior Wood Doors
All Hardware
Silver Finish Only
Exterior Aplications
offset to allow for weatherstripping
275 Max Door Weight
Doors Hinge to each other
Even number of Doors
with no Exterior
Entrance
Odd number of doors
with last door swinging
4' Max Door Width
Door thickness 1 11/16" - 2 1/4"
Requires
Bottom Guide Track
or guide threshold

See our Al_Fresco Hardware Page as an Endfold Offset Alternative





shown with 971 Treshold
5" x 1/2"
8 foot - $95




65B/20 Hinges
$ 140.00 ea
half hinge $ 70.00
Installation information

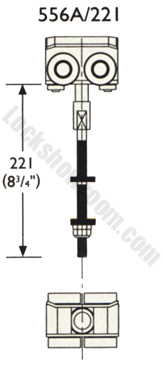

556A/ 221
Top Roller Bracket
$ 630.00 + HINGE


with 94 bottom guide track

Bottom Guide Pin

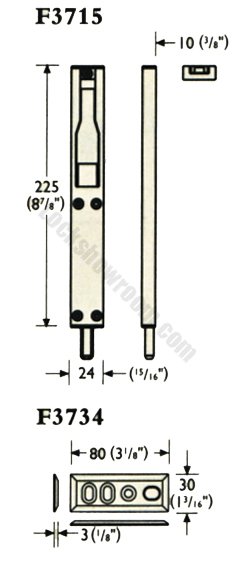

F3715 - Flush Bolt $ 90.00
F3734 - Strike $ 18.00
68BA/110 for ues with 1/2 hinge $ 32.00
67BA/150 for use with full hinge $ 42.00

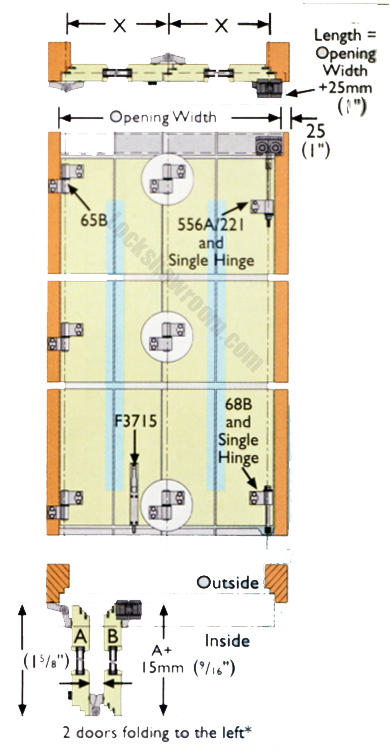

Odd Door Layout

Even Door Layout


PcHenderson Flexirol Track and Roller Images

Standard Flexirol 556 Hanger
Rolls on Ball bearing wheels with
Ball Bearing Guide Wheels

Straight Sliding or 135
Bends
Doors up to 1100 pounds


Flexirol 555 Roller Hanger
for 90 degree track Situations

220 lbs doors

550 Track Supports
both the 555 and 556 Rollers



Heavy Duty Track is Large
3 7/8" wide x 2 7/8" tall
