hangingdoorhardware.com

HangingDoorHardware.com

Your Hanging Door Specialists


Complete Hanging Door Kits

Choose from Pocket Door or Straight Sliding
A. Pocket Door Kit includes
1 piece track
6' or 8' Aluminum
2 Ball Bearing
Rollers
1 Track Mounted Stop
system specific
2 rubber door stops
1 Pocket door guide 2551
For. Straight Sliding DoorApplication
Add an extra Track stop to the order along with floor or wall guide
New Magnetic Door Holders
For Sliding Doors
Click on Images below for more information and to buy individual parts Sidewall Mount Construction
Pocket Door Repair Video

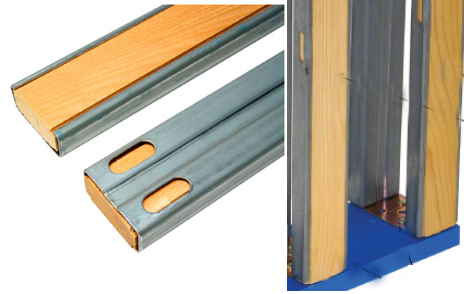

Pocket Door Uprights
Code Max Door Weight Name Click below for more information
or to buy components separately
Starting Price Order complete Kit
CAV6 200 M6 KIT CAVILOCK M6 ROLLER
Smooth 1 1/8" Bearing Rollers
$ 279.99



Also Available with Soft Close
for doors up to 265 lbs

Track sidewall thickness .0785"

CAV8 500 M8KIT CAVILOCK M8
Smooth 1 1/8" Bearing Rollers
$ 449.99



Also Available with Soft Close
for doors up to 265 lbs

Track sidewall thickness .0785"

A 300 lbs Johnson
I -track
johnson 2020 $ 159.99
Parts


Buy 3 or more of this kit online, save $ 10.00 ea
B 200 lbs 3-200 KIT

johnson 1125
Available with Soft Close

Heavy duty Track Option now Availalbe
track is 25% thicker for more support

$ 79.99
Parts

Select Track Length
Heavy Duty Track upgrade
Soft Close Options




Online Only Special
Buy 2 or more - save $10.00 per kit

Track sidewall thickness .0550"

C 100 lbs Johnson
1025
johnson 1025 $ 59.99
Parts
orders will be shipped when staock arrives


Online Only Special
Buy 2 kits save $10.00 per kit
Buy 4 or more - save $20.00 per kit

Track sidewall thickness .0475"

COX 180 LBS COX 32 $ 89.99

In Stock

In stock ships daily


Online Only Special
Buy 2 kits save $10.00 per kit
Buy 4 or more - save $20.00 per kit

Track sidewall thickness .0500"

CP 200 lbs Husky pc henderson rollers From
$ 80.00
Custom Kits Available for
Dual Action Doors - Minimum Clearance Doors

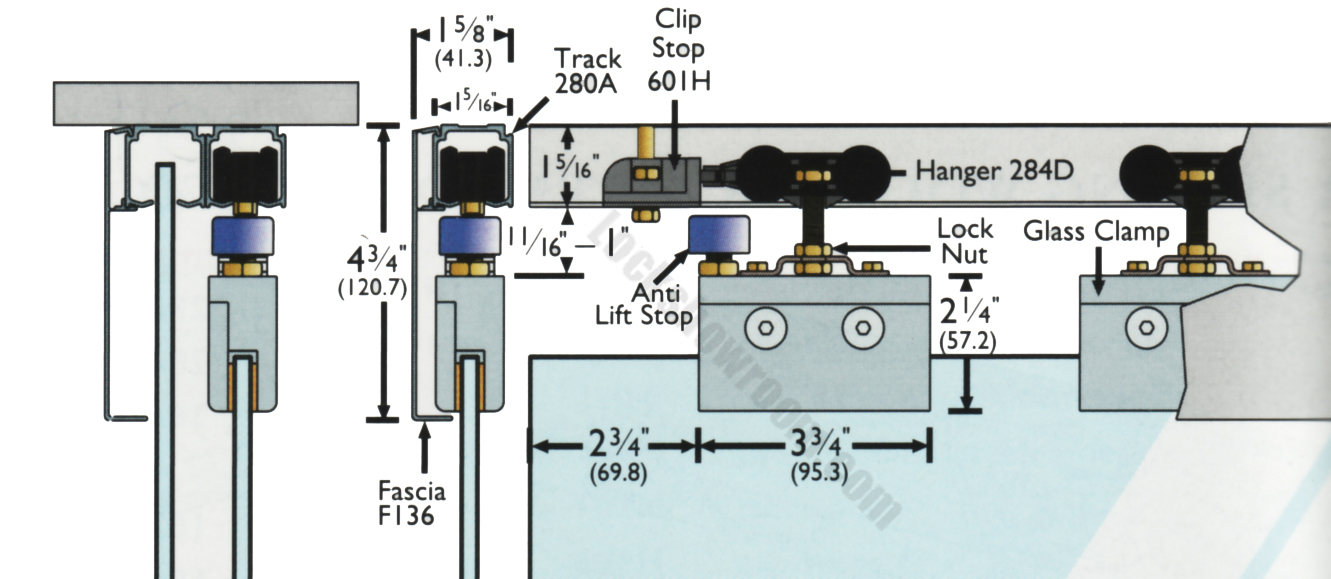

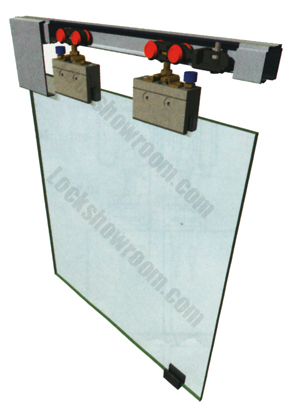

Glass Clamp Kit - Soft Close Kit
D 365 lbs Kris Track
KT- 41
kris track roller $ 345.00

In stock ships daily




Track sidewall thickness .104"
D70 650 lbs Kris Track
KT- 70
kt70 roller From
$ 1550.00
Track sidewall thickness .1145"

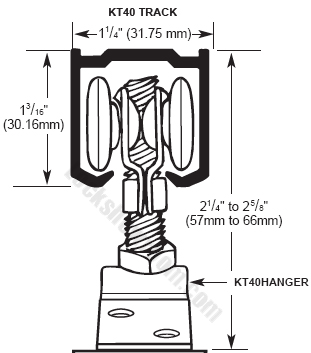

E 220 lbs Kris Track
KT- 40
kt40 roller $ 79.99
Parts

In stock Ships Daily
Buy 2 or more of this kit online, save 10%

Track sidewall thickness .0680"

F 165 lbs Stainless
T-300
stainless roller $ 540.00


Quantity
G 450 lbs KNCrowder
C818 HD
crowder c818 $ 769.99

H 125 lbs KNCrowder
C-304
Min Clearance
crowder c-304 $ 130.00


Quantity
K 440 lbs PCHenderson

Pacer Sliding
pacer door roller From
$ 400

Visit Our Pacer Page for
Kit Specifics and to Order

Track sidewall thickness .1745"

L 1100 lbs PCHenderson

Flexirol Sliding
flexiroll roller From
$ 999

Visit Our Flexirol Page for
Kit Specifics and to Order

Track sidewall thickness .2220"



AA

Johnson 300 lb
I Track

Installation Instructions

Listed Weight requires 2 rollers per door

300 lb. Pocket Door Complete Kit $159.99
Track, 2 Rollers, 1 Track Stop, 2 Door Stops, 1 Pocket Door Guide (2551)




Buy 3 or more Kits save $10.00 ea

I Track
Aluminum

sliding door track
click above for larger image

6 foot track $79.99 ea



Buy 2 - Save $10.00 ea
Buy 4 or more Save $20.00 ea

2020
300 lb roller assembly


Heavy Duty Ball Bearing roller assembly
with quick connect and easy height adjustment
dimensions
johnson roller
click above for larger image

2020 Roller $ 37.99
FOR I TRACK EA

2 needed per door
Quantity

2055
Clip Stop for I-Track
dimensions

Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time
2055 Clip Stop
$ 7.99 EA


Quantity

2056
Hold for 2055 Clip Stop


Holds the door in place

2056 Door Holder for 2055
(2055 sold separately)
$ 2.99

Qty

I - Track 300 pound
Pocket Door Frame Kit
for doors up to 3' x 6' 8"
(203068PF)
Can be cut down
1 3/8" thick doors

contact us for thicker doors

Also See our Cavilock Frame kit
Our Best kit option
with full aluminium construction

Includes

1 - Header Length
2 - Upright Pairs - Purchase uprights only

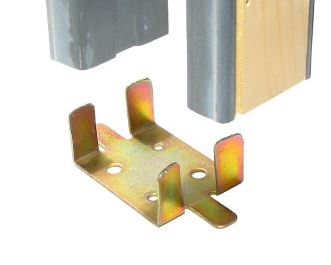

2 - Floor Brackets
2 - 2020 Hangers
1 - 1550 Door Guide
1 - 1513 Door Stop


Instructions
I track Frame Kit
$ 349.99

Quantity

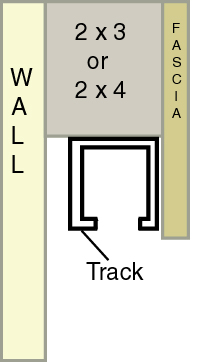

2006
Surface Mount Bracket
for I-track


1 Bracket for every 16" of track
J2006
$ 19.99

Quantity
I Track
Bi-folding Kit
up to 125 lb panels
  $ 69.99
Quantity

BB

200 lb
3x200KIT
Available with Soft Close

Installation Instructions

Listed Weight requires 2 rollers per door
in stock

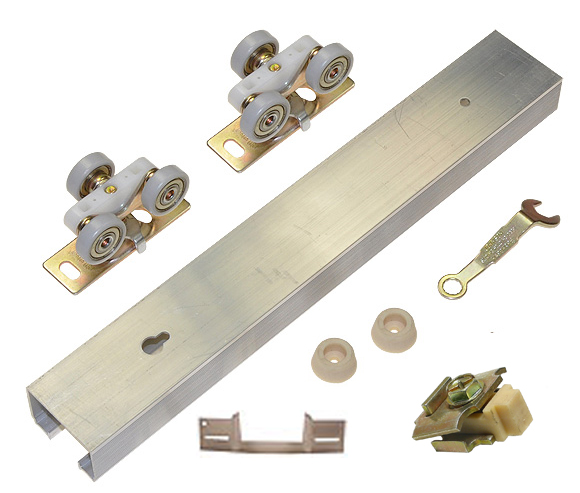

200 lb. Pocket Door Complete Kit $ 79.99
Track, 2 Rollers, 1 Track Stop, 2 Door Stops, 1 Pocket Door Guide (2551), wrench
or all parts can be purchased separately

But 2 or more kits save $10.00 per kit








For straight sliding application - add a 1155 track stop below

New
Upgraded to HD stiffer track option


Now Available with Soft Stop/Close
Slowly closes the door in the last inch of travel

min Door width one side 24" - add $ 25.00 to Kit Price
min Door width both sides 28" add $ 50.00 to Kit price

video
instructions



200 lb Stanadrd Track
Aluminum


orders will be shipped when staock arrives



Buy 2 or more - save $10.00 ea
200 lb
Heavy Duty Track
25% thicker than the standard Track
.075 wall thickness
Less posibility of flex - more solid feel

Buy 2 or more - save $10.00 ea
3-200
200 lb roller assembly
1 UNIT $ 13.00 ea.

1" Diameter Wheels
click above for larger image
pocket door roller
Heavy Duty Ball Bearing roller assembly
with quick connect and easy height adjustment

2 per door needed
dimensions
$ 13.99
Quantity

1155
CLIP STOP
$ 2.00 EA

Clip Stop for U track

Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time


$ 1.99

Quantity

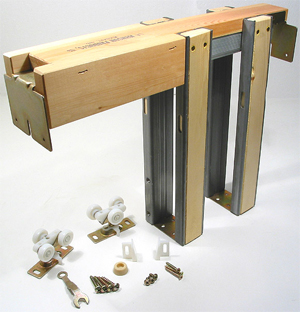

U- Track 200 pound
Pocket Door Frame Kit
for doors up to 3' x 6' 8"
Can be cut down

1 3/8" thick doors


contact us for thicker doors

Includes

1 - Header Length
2 - Upright Pairs - Purchase uprights only
2 - Floor Brackets
2 - 1125 Hangers
1 - 1550 Door Guide
1 - 1513 Door Stop

Available with Soft Close Both Ends
Instructions



Also See our Cavilock Frame kit
Our Best kit option
with full aluminium construction

1125 Frame kit $ 279.99
with soft close on both ends
Quantity

1125 frame kit $ 199.99
without Soft Close

Quantity


1125 Frame kit $ 499.99
with soft close on both ends

8' tall Door



Includes freight adder


Double Track
for Bi- Pass Application

Available for and 1 3/8" thick Doors

Silver or Bronze Finish track
bronze track
Available for and 1 3/8" thick Doors

Silver or Bronze Finish track

1 3/8" thick doors

from $ 79.99



_________________________________________

1 3/4" Thick Door track

Sold Out
Back order 120 days



U Track - Bi-folding Kit
up to 75 lb panels
installation instructions
Bi-fold kit for 1125
$ 34.99

Quantity

3-SOFT
Soft Close Unit

johnson soft stop

installation instructions

min Door width one side 24"
min Door width both sides 28"

Replaces 1 roller and 1 stop

$ 39.99
Quantity

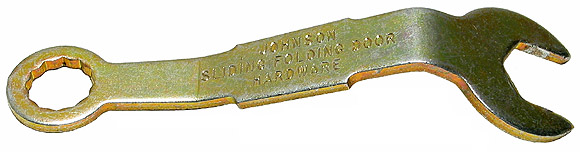

Adjustment Wrench
for Johnson Rollers
dimensions $ .99
Quantity
8 foot
Wall Mounted Track
2610 F - silver
Includes End Caps
wall mounted track johnson hardware wall mount kit
installation instructions
2610 - Silver
wall mounted track

8 foot
Wall Mounted Track
2610 FB - bronze
Includes End Caps
johnason hardware wall mount kit
installation instructions

2610 - Bronze
wall mounted track


New Side mount Bracket Hanger

Helps to Support Heavy Doors

Stops risk of screws pulling out the top
of the door

J1127
for 1 3/8" doors

$ 15.99




J1128
for 1 3/4" doors

$15.99


Quantity



CC

Johnson 100 lb
1025

Installation Instructions

Listed Weight requires 2 rollers per door

100 lb. Pocket Door Complete Kit $ 59.99
Track, 2 Rollers, 1 Track Stop, 2 Door Stops, 1 Pocket Door Guide (2551), wrench




Buy 2 tracks save $10.00 ea
Buy 4 or more - save $20.00 ea


For straight sliding application - add a 1155 track stop below

1025
100 lb roller assembly
1 UNIT $ 10.00 ea.


3/4" Diameter Wheels


Heavy Duty Ball Bearing
roller assembly
with quick connect and
easy height adjustment


2 per door needed
dimensions

1025 Roller
$ 10.99 ea.

2 needed per door

Quantity

1155
CLIP STOP

Clip Stop for U track

Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time

1155 clip stop
$ 1.99 EA



Quantity

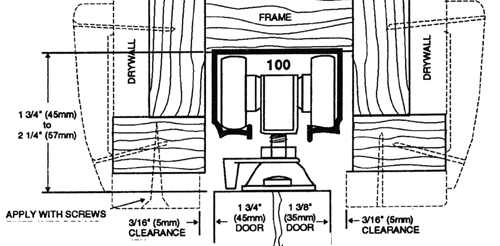

1025 U-TRACK
Aluminum
100 LB
3/4" ROLLERS


1025 U track


orders will be shipped when staock arrives




Buy 2 tracks save $10.00 ea
Buy 4 or more - save $20.00 ea

3/4 inch
Door Adapter
J1023
johnson door hardware Used for extra side
support on thin doors.
Use with 1025 roller


Click for Dimensions
J1023 sidewall adapter
$ 2.49
Quantity


COX

Cox 32 Door track system

In Stock


For Doors up to
175 Pound
s

Smooth Ball Bearing
Operation
COX 32 TRACK
1.39" wide x 1.06 tall


32-200 Aluminum Track
6' - $ 49.99
8' - $ 64.99


Buy 2 tracks save $10.00 ea
Buy 4 or more - save $20.00 ea


BB 163208 Roller Kit $39.99
Includes 2 rollers, pocket door Guide and bumper stops

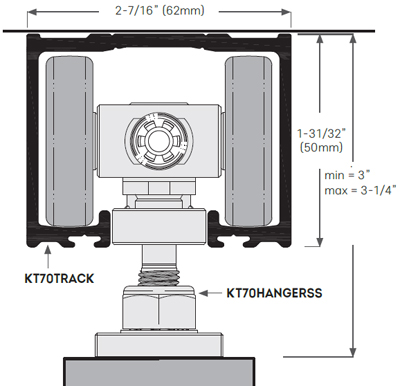

D70

Kris Track 650 lb
KT 70

Listed Weight requires 2 rollers per door




Extruded Aluminum

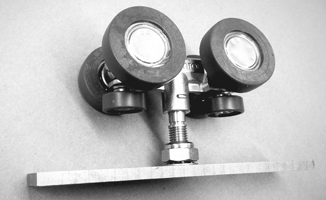

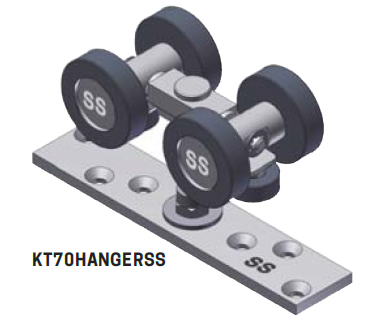

KT70 SS
Stainless Steel Roller with Nylon Wheels
KT128
Inline Track Stop
KT 70 Track
$ 799.99 ea $ 119.99 ea 94 inch track $ 275.00



Aluminum Long track available
12' $ 2950.00
Bronze Long track available
12' $ 300.00
16' $ 420.00
24' $ 565.00




Plus freight charges




DD

Kris Track 385 lb
KT 41

Listed Weight requires 2 rollers per door

order 6' Kit From $ 345.00
In Stock



2 Rollers, Track, Stop, Guide
Heavy Weight Capacity in
a Low Profile Track

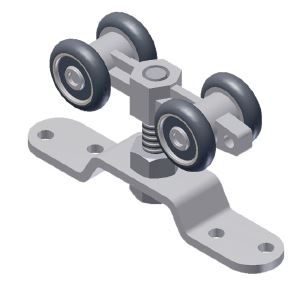

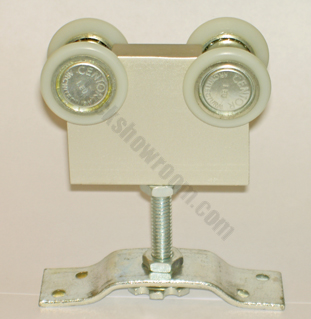

Rollers for KT 41 Track
KT 41 - 385 lbs
Steel Roller with Nylon Wheel
Precision Ground Bearings
KT 41 SS - 385 lbs
Stainless Steel
Roller/ Hanger
with Nylon Wheel
Precision Ground Bearings



Rollers for KT 41 Track
2 needed per door
KT 41 - 385 lbs
$ 119.99 ea.

Quantity
KT 41 SS - 385 lbs
$ 199.99 ea
Stainless Steel
Quantity

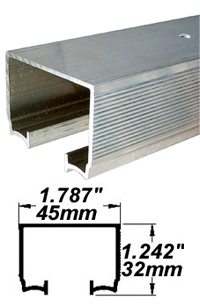

KT 41
Aluminum Track
sliding door track
1 1/2" x 1 3/8"



long track available
Aluminum Finish
12' $ 130.00
Bronze Finish
12' $ 220.00
Call to place order


Plus freight charges

Aluminum Finish Track

In Stock
Select Length



Anodized Bronze Finish

Select Length

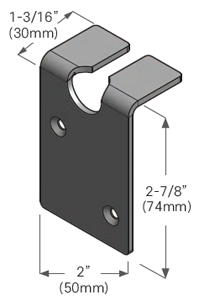

KT 142B
Wall Mount Bracket
$ 19.99 ea.
18" Spacing Recommended $ 19.99 ea.

Quantity
KT 129B
Track Mounted Stop
$ 23.99 ea.
Track mounted stop to control
Door travel

Includes metal arm that can be mounted
to top of the door
KT 129B
$ 23.99 ea.

Quantity
Side mount Bracket for Hanger
KT147B
$ 16.00
Additional bracket to help add
strength to hanger install

mounts over the top
of the standard hanger
KT 147B
$ 25.99


Quantity

Visit our Door Guide Page for
Bottom Guide Channel and Rollers







EE
KT 40
220 LB TRACK AND ROLLER SETS
Listed Weight requires 2 rollers per door


In Stock


Standard Pocket door kit
2 Rollers, Track Stop, Wall bumper, Guide

Straight Sliding has 2 track stops

KT 40
Hanger


220 lbs.

1" Diameter Wheels
2 per door needed

Base 3 3/8" x 1"

Heavy Duty Ball Bearing roller assembly
Steel Construction - Zinc Plated

$ 19.99 ea

Quantity

KT 38
Hanger


132 lbs.

kt38 roller

1" Diameter Wheels
2 per door needed

Base 3 3/4" x 3/4"

Heavy Duty Ball Bearing roller assembly
Steel Construction - Zinc Plated
Includes Clip Stop

10.99 ea


KT 40
Aluminum Track
pocket door hardware Aluminum Finish

Quantity
KT 125 B
Track Stop
Mounts to track and stops travel of door
with cushioning bumpers

Use on either end - if used in back of pocket
second hard stop is recommended in
case the units slips in time

$ 7.99 ea

Quantity

UP

Metal Clad Uprights



Uprights only to build your own frame

Heavy gauge Steel Wrapped Split Studs resist rust in damp locations and provide rigid pocket structure. Drywall is fastened to the split studs using standard drywall screws, Steel wrapping prevents screw penetration into pocket.

Dimensions
1 13/16" x 13/16" x 84 1/8""

Sold by the pair $ 40.00


Quantity








Floor Mount Bracket

mounts to the floor to and holds the bottom of the Uprights

$ 7.00


Quantity


GG

KrisTrack Wall Mount Kit
KT47

wall mount kit

Wall mount Kit for 220 lb doors


Kit Includes Track and Fascia, 2 rollers, 2 stops, 2 end caps


KT47 Wall Mount Track Kit


Quantity




12' Track $ 500.00 + freight
16' Track $ 550.00 + freight

Plus freight charges

Lead time 3-4 weeks on
8' + tracks


HH

Pocket Door Jamb Kit




Primed Jamb Kit for Pocket Doors
36" Wide Doors

Quantity


Simple Construction for Surface mounting track

For More Details - Click on Images Below

wall mount track
Attach 2 x 3 or 2 x 4 wood stud to wall
wall mount track kit
attach track to stud above
Space for thickness of door
Attach fascia to the stud
to cover stud and Track




Support for the top of door
roller suport
Barrel Nuts






Pocket / Sliding / Folding
Door Track and Kits
Link to more
Information
Max Weight
Sliding Door
pounds
Top Spacing
Minimum
Track Material Options
Bearing
Rollers
Folding Door
Applications
Glass
Clamp Kit
Pocket Door
Frame Kits
In Stock

Aluminum
Steel
Stainless
Steel
Bronze
Finish
Husky
200

1 7/8"

x
x
x
x
x

Johnson 1025
100
1 9/16"
x
x

Johnson 1125
200
1 3/4"
x

x
x

x

I Track
300
3 1/8"
x
x
x
x

KT - KrisTrack
440
2 3/8"
x
x
x



Long track freight Charges
8-12 feet $ 500.00
12-16 feet $ 750.00
16- 24 feet $ 1000..00


Flipper Door Push-Slide Door

ORDER TOLL FREE (888) 915-5223

Woodward's Hardware
2343 N. Tustin Ave, Santa Ana, CA 92705
(714-541-5268 FAX (714)541-2123
