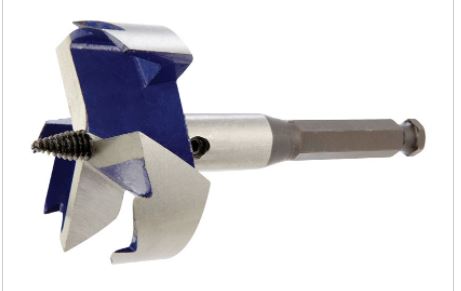

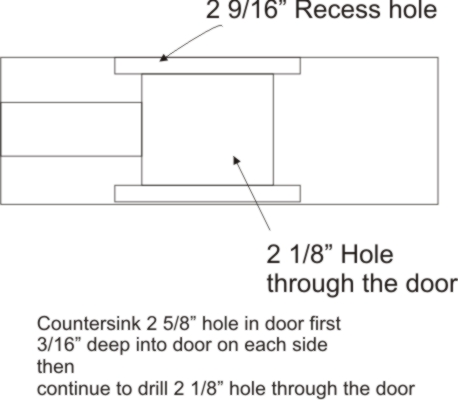

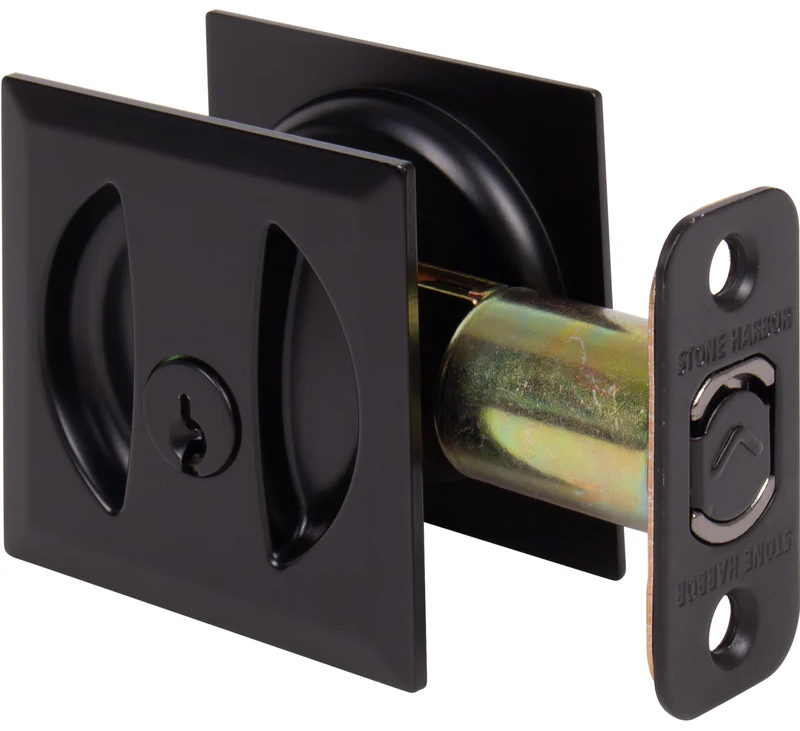

Standard Door Prep- Fits in 2 1/8" hole
(add 1" hole 2.75" deep)
On pre drilled holes
latch will need to be recessed
approx. an extra 1/32"
Backset is 60mm
Fits doors 1 3/8" only

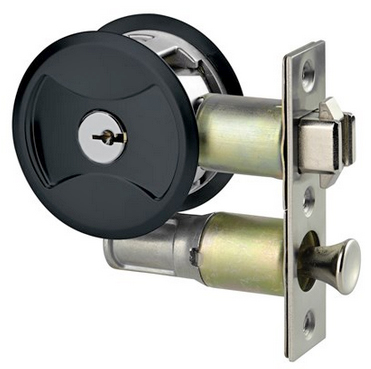

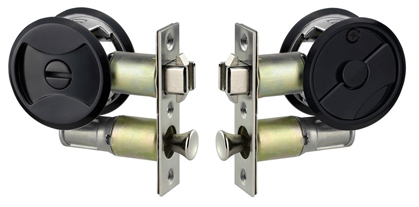

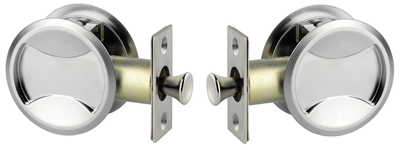

Select Function and Order Below

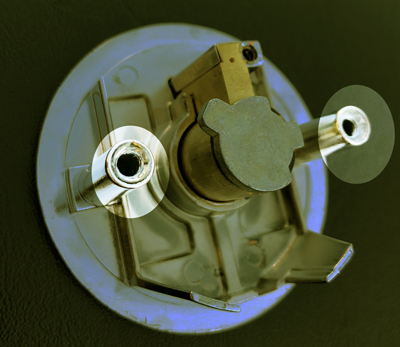

Holes for bolts are not threaded. Self threading screws are
provided that will cut their own threads during install.
